JUnit5 应用指南

version: junit5

• 1. 安装

• 2. JUnit 注解

• 3. 编写单元测试

  • 3.1. 基本的单元测试类和方法

  • 3.2. 定制测试类和方法的显示名称

  • 3.3. 断言（Assertions）

  • 3.4. 假想（Assumptions）

  • 3.5. 禁用

  • 3.6. 测试条件

  • 3.7. 嵌套测试

  • 3.8. 重复测试

  • 3.9. 参数化测试

• 4. 引用和引申

1. 安装

在 pom 中添加依赖

<properties>
  <junit.jupiter.version>5.3.2</junit.jupiter.version>
</properties>

<dependencies>
  <dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-api</artifactId>
    <version>${junit.jupiter.version}</version>
    <scope>test</scope>
  </dependency>
  <dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-params</artifactId>
    <version>${junit.jupiter.version}</version>
    <scope>test</scope>
  </dependency>
  <dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-engine</artifactId>
    <version>${junit.jupiter.version}</version>
    <scope>test</scope>
  </dependency>
</dependencies>

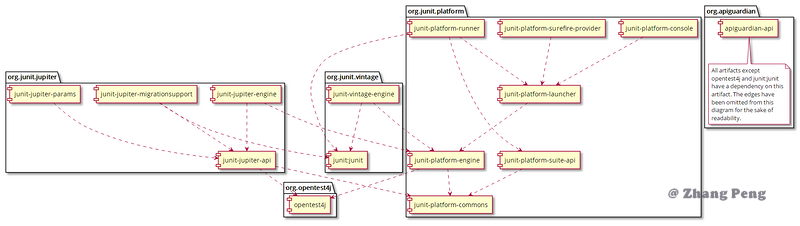

组件间依赖关系：


2. JUnit 注解

Annotation	Description
@Test	Denotes that a method is a test method. Unlike JUnit 4’s @Test annotation, this annotation does not declare any attributes, since test extensions in JUnit Jupiter operate based on their own dedicated annotations. Such methods are inherited unless they are overridden.
@ParameterizedTest	Denotes that a method is a parameterized test. Such methods are inherited unless they are overridden.
@RepeatedTest	Denotes that a method is a test template for a repeated test. Such methods are inherited unless they are overridden.
@TestFactory	Denotes that a method is a test factory for dynamic tests. Such methods are inherited unless they are overridden.
@TestInstance	Used to configure the test instance lifecycle for the annotated test class. Such annotations are inherited.
@TestTemplate	Denotes that a method is a template for test cases designed to be invoked multiple times depending on the number of invocation contexts returned by the registered providers. Such methods are inherited unless they are overridden.
@DisplayName	Declares a custom display name for the test class or test method. Such annotations are not inherited.
@BeforeEach	Denotes that the annotated method should be executed before each @Test, @RepeatedTest, @ParameterizedTest, or @TestFactory method in the current class; analogous to JUnit 4’s @Before. Such methods are inherited unless they are overridden.
@AfterEach	Denotes that the annotated method should be executed after each @Test, @RepeatedTest, @ParameterizedTest, or @TestFactory method in the current class; analogous to JUnit 4’s @After. Such methods are inherited unless they are overridden.
@BeforeAll	Denotes that the annotated method should be executed before all @Test, @RepeatedTest, @ParameterizedTest, and @TestFactory methods in the current class; analogous to JUnit 4’s @BeforeClass. Such methods are inherited (unless they are hidden or overridden) and must be static (unless the "per-class" test instance lifecycle is used).
@AfterAll	Denotes that the annotated method should be executed after all @Test, @RepeatedTest, @ParameterizedTest, and @TestFactory methods in the current class; analogous to JUnit 4’s @AfterClass. Such methods are inherited (unless they are hidden or overridden) and must be static (unless the "per-class" test instance lifecycle is used).
@Nested	Denotes that the annotated class is a nested, non-static test class. @BeforeAll and @AfterAllmethods cannot be used directly in a @Nested test class unless the "per-class" test instance lifecycle is used. Such annotations are not inherited.
@Tag	Used to declare tags for filtering tests, either at the class or method level; analogous to test groups in TestNG or Categories in JUnit 4. Such annotations are inherited at the class level but not at the method level.
@Disabled	Used to disable a test class or test method; analogous to JUnit 4’s @Ignore. Such annotations are not inherited.
@ExtendWith	Used to register custom extensions. Such annotations are inherited.

3. 编写单元测试

3.1. 基本的单元测试类和方法

import org.junit.jupiter.api.*;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

class Junit5StandardTests {

    private static final Logger LOGGER = LoggerFactory.getLogger(Junit5StandardTests.class);

    @BeforeAll
    static void beforeAll() {
        LOGGER.info("call beforeAll()");
    }

    @BeforeEach
    void beforeEach() {
        LOGGER.info("call beforeEach()");
    }

    @Test
    void succeedingTest() {
        LOGGER.info("call succeedingTest()");
    }

    @Test
    void failingTest() {
        LOGGER.info("call failingTest()");
        // fail("a failing test");
    }

    @Test
    @Disabled("for demonstration purposes")
    void skippedTest() {
        LOGGER.info("call skippedTest()");
        // not executed
    }

    @AfterEach
    void afterEach() {
        LOGGER.info("call afterEach()");
    }

    @AfterAll
    static void afterAll() {
        LOGGER.info("call afterAll()");
    }
}

3.2. 定制测试类和方法的显示名称

支持普通字符、特殊符号、emoji

import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;

@DisplayName("A special test case")
class JunitDisplayNameDemo {

    @Test
    @DisplayName("Custom test name containing spaces")
    void testWithDisplayNameContainingSpaces() { }

    @Test
    @DisplayName("╯°□°）╯")
    void testWithDisplayNameContainingSpecialCharacters() { }

    @Test
    @DisplayName("😱")
    void testWithDisplayNameContainingEmoji() { }
}

3.3. 断言（Assertions）

import org.junit.jupiter.api.BeforeAll;
import org.junit.jupiter.api.Test;

import static java.time.Duration.ofMillis;
import static java.time.Duration.ofMinutes;
import static org.junit.jupiter.api.Assertions.*;

class AssertionsDemo {

    private static Person person;

    @BeforeAll
    public static void beforeAll() {
        person = new Person("John", "Doe");
    }

    @Test
    void standardAssertions() {
        assertEquals(2, 2);
        assertEquals(4, 4, "The optional assertion message is now the last parameter.");
        assertTrue('a' < 'b', () -> "Assertion messages can be lazily evaluated -- "
            + "to avoid constructing complex messages unnecessarily.");
    }

    @Test
    void groupedAssertions() {
        // In a grouped assertion all assertions are executed, and any
        // failures will be reported together.
        assertAll("person", () -> assertEquals("John", person.getFirstName()),
            () -> assertEquals("Doe", person.getLastName()));
    }

    @Test
    void dependentAssertions() {
        // Within a code block, if an assertion fails the
        // subsequent code in the same block will be skipped.
        assertAll("properties", () -> {
            String firstName = person.getFirstName();
            assertNotNull(firstName);

            // Executed only if the previous assertion is valid.
            assertAll("first name", () -> assertTrue(firstName.startsWith("J")),
                () -> assertTrue(firstName.endsWith("n")));
        }, () -> {
            // Grouped assertion, so processed independently
            // of results of first name assertions.
            String lastName = person.getLastName();
            assertNotNull(lastName);

            // Executed only if the previous assertion is valid.
            assertAll("last name", () -> assertTrue(lastName.startsWith("D")),
                () -> assertTrue(lastName.endsWith("e")));
        });
    }

    @Test
    void exceptionTesting() {
        Throwable exception = assertThrows(IllegalArgumentException.class, () -> {
            throw new IllegalArgumentException("a message");
        });
        assertEquals("a message", exception.getMessage());
    }

    @Test
    void timeoutNotExceeded() {
        // The following assertion succeeds.
        assertTimeout(ofMinutes(2), () -> {
            // Perform task that takes less than 2 minutes.
        });
    }

    @Test
    void timeoutNotExceededWithResult() {
        // The following assertion succeeds, and returns the supplied object.
        String actualResult = assertTimeout(ofMinutes(2), () -> {
            return "a result";
        });
        assertEquals("a result", actualResult);
    }

    @Test
    void timeoutNotExceededWithMethod() {
        // The following assertion invokes a method reference and returns an object.
        String actualGreeting = assertTimeout(ofMinutes(2), AssertionsDemo::greeting);
        assertEquals("Hello, World!", actualGreeting);
    }

    @Test
    void timeoutExceeded() {
        // The following assertion fails with an error message similar to:
        // execution exceeded timeout of 10 ms by 91 ms
        assertTimeout(ofMillis(10), () -> {
            // Simulate task that takes more than 10 ms.
            Thread.sleep(100);
        });
    }

    @Test
    void timeoutExceededWithPreemptiveTermination() {
        // The following assertion fails with an error message similar to:
        // execution timed out after 10 ms
        assertTimeoutPreemptively(ofMillis(10), () -> {
            // Simulate task that takes more than 10 ms.
            Thread.sleep(100);
        });
    }

    private static String greeting() {
        return "Hello, World!";
    }

}

3.4. 假想（Assumptions）

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assumptions.assumeTrue;
import static org.junit.jupiter.api.Assumptions.assumingThat;

import org.junit.jupiter.api.Test;

class AssumptionsDemo {

    @Test
    void testOnlyOnCiServer() {
        assumeTrue("CI".equals(System.getenv("ENV")));
        // remainder of test
    }

    @Test
    void testOnlyOnDeveloperWorkstation() {
        assumeTrue("DEV".equals(System.getenv("ENV")),
            () -> "Aborting test: not on developer workstation");
        // remainder of test
    }

    @Test
    void testInAllEnvironments() {
        assumingThat("CI".equals(System.getenv("ENV")),
            () -> {
                // perform these assertions only on the CI server
                assertEquals(2, 2);
            });

        // perform these assertions in all environments
        assertEquals("a string", "a string");
    }

}

3.5. 禁用

禁用单元测试类示例：

import org.junit.jupiter.api.Disabled;
import org.junit.jupiter.api.Test;

@Disabled
class DisabledClassDemo {
    @Test
    void testWillBeSkipped() {
    }
}

禁用单元测试方法示例：

import org.junit.jupiter.api.Disabled;
import org.junit.jupiter.api.Test;

class DisabledTestsDemo {

    @Disabled
    @Test
    void testWillBeSkipped() {
    }

    @Test
    void testWillBeExecuted() {
    }
}

3.6. 测试条件

操作系统条件

@Test
@EnabledOnOs(MAC)
void onlyOnMacOs() {
    // ...
}

@TestOnMac
void testOnMac() {
    // ...
}

@Test
@EnabledOnOs({ LINUX, MAC })
void onLinuxOrMac() {
    // ...
}

@Test
@DisabledOnOs(WINDOWS)
void notOnWindows() {
    // ...
}

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Test
@EnabledOnOs(MAC)
@interface TestOnMac {
}

Java 运行时版本条件

@Test
@EnabledOnJre(JAVA_8)
void onlyOnJava8() {
    // ...
}

@Test
@EnabledOnJre({ JAVA_9, JAVA_10 })
void onJava9Or10() {
    // ...
}

@Test
@DisabledOnJre(JAVA_9)
void notOnJava9() {
    // ...
}

系统属性条件

@Test
@EnabledIfSystemProperty(named = "os.arch", matches = ".*64.*")
void onlyOn64BitArchitectures() {
    // ...
}

@Test
@DisabledIfSystemProperty(named = "ci-server", matches = "true")
void notOnCiServer() {
    // ...
}

3.7. 嵌套测试

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertFalse;
import static org.junit.jupiter.api.Assertions.assertThrows;
import static org.junit.jupiter.api.Assertions.assertTrue;

import java.util.EmptyStackException;
import java.util.Stack;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Nested;
import org.junit.jupiter.api.Test;

@DisplayName("A stack")
class TestingAStackDemo {

    Stack<Object> stack;

    @Test
    @DisplayName("is instantiated with new Stack()")
    void isInstantiatedWithNew() {
        new Stack<>();
    }

    @Nested
    @DisplayName("when new")
    class WhenNew {

        @BeforeEach
        void createNewStack() {
            stack = new Stack<>();
        }

        @Test
        @DisplayName("is empty")
        void isEmpty() {
            assertTrue(stack.isEmpty());
        }

        @Test
        @DisplayName("throws EmptyStackException when popped")
        void throwsExceptionWhenPopped() {
            assertThrows(EmptyStackException.class, () -> stack.pop());
        }

        @Test
        @DisplayName("throws EmptyStackException when peeked")
        void throwsExceptionWhenPeeked() {
            assertThrows(EmptyStackException.class, () -> stack.peek());
        }

        @Nested
        @DisplayName("after pushing an element")
        class AfterPushing {

            String anElement = "an element";

            @BeforeEach
            void pushAnElement() {
                stack.push(anElement);
            }

            @Test
            @DisplayName("it is no longer empty")
            void isNotEmpty() {
                assertFalse(stack.isEmpty());
            }

            @Test
            @DisplayName("returns the element when popped and is empty")
            void returnElementWhenPopped() {
                assertEquals(anElement, stack.pop());
                assertTrue(stack.isEmpty());
            }

            @Test
            @DisplayName("returns the element when peeked but remains not empty")
            void returnElementWhenPeeked() {
                assertEquals(anElement, stack.peek());
                assertFalse(stack.isEmpty());
            }
        }
    }
}

3.8. 重复测试

import static org.junit.jupiter.api.Assertions.assertEquals;

import java.util.logging.Logger;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.RepeatedTest;
import org.junit.jupiter.api.RepetitionInfo;
import org.junit.jupiter.api.TestInfo;

class RepeatedTestsDemo {

    private Logger logger = // ...

    @BeforeEach
    void beforeEach(TestInfo testInfo, RepetitionInfo repetitionInfo) {
        int currentRepetition = repetitionInfo.getCurrentRepetition();
        int totalRepetitions = repetitionInfo.getTotalRepetitions();
        String methodName = testInfo.getTestMethod().get().getName();
        logger.info(String.format("About to execute repetition %d of %d for %s", //
            currentRepetition, totalRepetitions, methodName));
    }

    @RepeatedTest(10)
    void repeatedTest() {
        // ...
    }

    @RepeatedTest(5)
    void repeatedTestWithRepetitionInfo(RepetitionInfo repetitionInfo) {
        assertEquals(5, repetitionInfo.getTotalRepetitions());
    }

    @RepeatedTest(value = 1, name = "{displayName} {currentRepetition}/{totalRepetitions}")
    @DisplayName("Repeat!")
    void customDisplayName(TestInfo testInfo) {
        assertEquals(testInfo.getDisplayName(), "Repeat! 1/1");
    }

    @RepeatedTest(value = 1, name = RepeatedTest.LONG_DISPLAY_NAME)
    @DisplayName("Details...")
    void customDisplayNameWithLongPattern(TestInfo testInfo) {
        assertEquals(testInfo.getDisplayName(), "Details... :: repetition 1 of 1");
    }

    @RepeatedTest(value = 5, name = "Wiederholung {currentRepetition} von {totalRepetitions}")
    void repeatedTestInGerman() {
        // ...
    }

}

3.9. 参数化测试

@ParameterizedTest
@ValueSource(strings = { "racecar", "radar", "able was I ere I saw elba" })
void palindromes(String candidate) {
    assertTrue(isPalindrome(candidate));
}

4. 引用和引申

• Github

• 官方用户手册

• Javadoc

• 版本声明

• 官方示例
